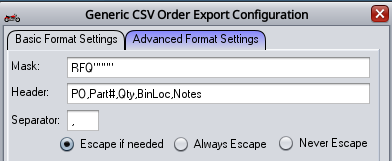

Generic Export has been modified to allow for more flexibility and sophistication to allow exporting of orders to suppliers. The interface for accessing this is low level. This post explains how to manage the various options.  The screen, at a glance:

Options in summary:

• Mask : Control fields that appear in export file and order they appear
• Header : Define a header in export file
• Separator : define character that separates fields in the file.  Typically it is either comma (,) or semi-colon (;)
• Escape : control escape behaviour. Escape can wrap data in quotes (") if needed.

Mask

Mask controls which fields to save in the exported file and the order for each of them. Each letter in mask defines a field to save. For example FDQBI means  following fields: Formatted part number, Description, Quantity required, Backorder status, customer invoice reference. of a Line like this:

10-035-12,"SPKT MTX 1446 K KX250F 05-2010 (K35)#",1,Y,0

Different characters mean different things. In summary:

Character	Field	Example	Default Header (see below)
F	Formatted part number. Part number with spaces + dashes	10-05C-12	Part Number
P	Clean part number. Same as formatted but spaces and dashes are removed.	1005C12	Part Number
D	Part Description	SPKT MTX 1439 520	Description
Q	Quantity to order	12	Quantity
B	Allow part to go onto backorder. Y or N	Y	OK to Backorder
I	Customer reference. Corresponds to invoice number. ‘0’ for stock	12300	Reference
R	Order Reference. Type + ordernmber	D7918	Your Ref
S	(new) Retail price, inc	120.95	RRP
C	(new) Cost Price, ex	76.42	Cost Price
"xyz"	Literal Value xyz. Replace with whatever you need here	xyz	xyz

Header

Header controls adding of a first record as a header record. It can be one of three values

If blank/empty it inserts no header at all

If it is value *AUTO* it will generate a header based on the mask and a masks default header fields as defined above.

For example If Mask is FDQBI and Header is *AUTO* then header will be this:

Part Number,Description,Quantity,OK to Backorder,Reference
10-035-12,"SPKT MTX 1446 K KX250F 05-2010 (K35)#",1,Y,0

Separator

Separator controls field separator in file.  Example output based on separator of ',' vs ';'

10-035-12,"SPKT MTX 1446 K KX250F 05-2010 (K35)#",1,Y,0
10-035-12;"SPKT MTX 1446 K KX250F 05-2010 (K35)#";1;Y;0

Escape

Escape controls use of escape control with quote (") Character. Example of possible outputs

Options	Result
If Required	10-035-12,"SPKT MTX 1446 K KX250F 05-2010 (K35)#",1,Y,0
Always	"10-035-12","SPKT MTX 1446 K KX250F 05-2010 (K35)#",1,"Y",0
Never	10-035-12,SPKT MTX 1446 K KX250F 05-2010 (K35)#,1,Y,0

Examples

Common suppliers and possible advanced configurations that should work

Softway

• Mask : FQ"MV"
• Header:
• Separator: semi-colon (;)
• Escape: never
• Notes: replace MV with supplier code representing the franchise. e.g. MV  =MV Agusta

Husqvarna P/E

• Mask: FRQ
• Header: Part No.;Your Ref;Quantity
• Separator: semi-colon (;)
• Escape: never
•

Mojo:

• Mask: FQ
• Header: PartID,Quantity

• Separator: comma(,)
• Escape: Escape if needed.
• Notes: Make the filename extension .xlsx in order to create a XLSX file instead of a CSV file


Stihl:

• Mask: FQ
• Header: ArticleNumber;OrderQuantity

• Separator: semi-colon (;)
• Escape: Escape never


Butmac:

• Mask: FQ
• Header:
• Separator: colon(;)
• Escape: never
• Notes: Butmac can be problematic with piston kits etc because spaces are significant.  Will not work with some parts when using c9 repo supplied file. Continue to use Butmac export in c9
